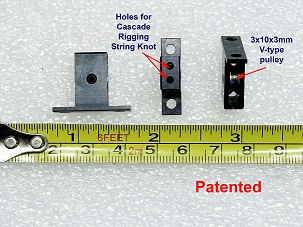

| |  | | BL-PM-01B Anodized Black Slide Pulley Module | This specially designed pulley module allows BL-300/BL-400 series to stack slides efficiently. Some notable features include:
- has a 3x10x3mm V-type pulley attached by a 3mm set screw. Loosening this screw allows for easy
loading/unloading...More
|
|
 | | BL-PM-01 Slide Pulley Module | This specially designed pulley module allows BL-300/BL-400 series to stack slides efficiently. Some notable features include:
- has a 3x10x3mm V-type pulley attached by a 3mm set screw. Loosening this screw allows for easy
loading/unloading...More
|

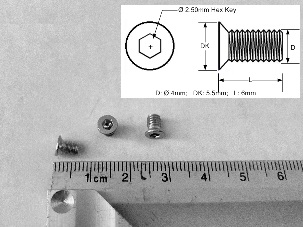

|  | | M4-6-5.5 6mm Slide Stack Screw | Low head countersunk M4 screw used to attach stacked slides back to back.
Screw Length (L): 6mm;
Head Diameter (DK): 5.5mm;
Ø2.5mm Hex key.
20 pieces/bag.
|
|  | | M4-10-5.5 10mm Slide Mounting Screw |
Low head countersunk M4 screw used to mount the stacked slides (more specifically, the bottom-most slide of the stack) onto the robot.
Screw Length (L): 10mm;
Head Diameter (DK): 5.5mm;
Ø2.5mm Hex key.
20...More |
|

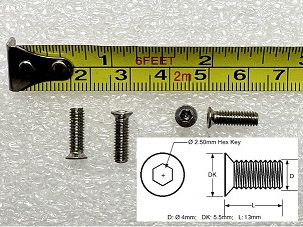

 | | M4-13-5.5 13mm Slide Mounting Screw |
Low head countersunk M4 screw used to mount the stacked slides (more specifically, the bottom-most slide of the stack) onto the robot.
Screw Length (L): 13mm;
Head Diameter (DK): 5.5mm;
Ø2.5mm Hex key.
20...More |

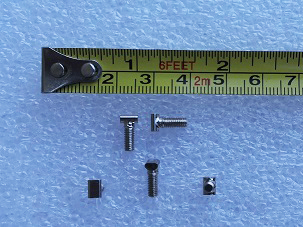

|  | | BL-TS10 T-Type Screw | Extended length zinc aluminum alloy T-Type M3 screw made for BWTLink series sliders.
Screw Length (L): 10mm;
Diameter: 3mm;
4 pieces/bag.
|

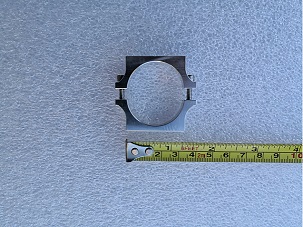

|  | | BL-CM32 Clamping Mount | This parenthesis shaped 32mm bore clamping mount provides these features:
- substitute for Actobotics' 32mm Bore Bottom Tapped Clamping Mount;
- easier to mount/dismount parts from tight space (e.g. simply unscrew 2 bolts and...More
|
|

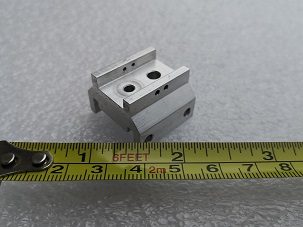

 | | BL-HG01 Slide Hole Guide | This multi-function tool can be used to drill:
- center mounting hole (M3 or M4) on both the inner and outer slide for attaching other parts;
- pulley module mounting hole (M3) on the side of the outer slide;
- Ø1.5mm...More
|
| | |
