BL-200A-2M 8" Anodized Black Slide With 2 Pulley Modules


$22.99

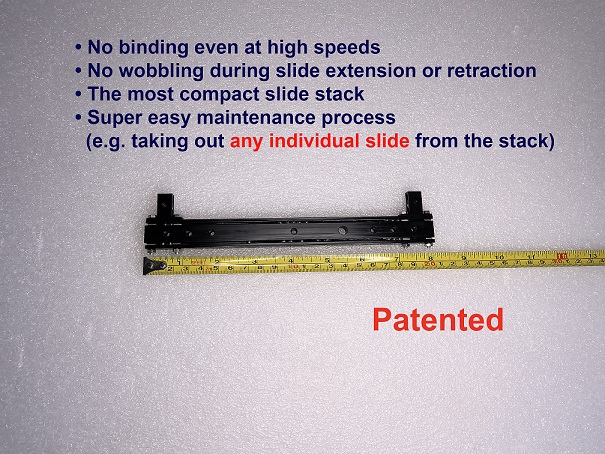

The BL-200A-2M slide, part of our BWTLink slide family, comes with these features:
  • Newly designed end stops (see the image gallery) which mitigate the binding issues caused from high speed ramming.
  • No wobbling during slide extension or retraction;
  • Fits ALL build patterns of FTC (goBilda, REV, Tetrix, and Actobotics);
  • Can stack directly with M4-6-5.5 screws (6mm) on top of each other without extra spacers; this will make slide-stacks stronger, smaller, and increasingly more stable;
  • Any singular slide can be dismounted directly from a stack of slides without need to uninstall all other slides (watch this video);
  • Can mount up to 4 BWTLink specially designed Pulley Modules BL-PM-01B easily;
  • Can use pulley module mounting sites to attach user-customized module(s)/part(s);
  • Equipped with 3 sets of ball bearings that help prevent slide from wobbling between open and close;

BL-200A-2M Included: 2 BL-PM-01B Anodized Black Slide Pulley Modules
Weight: 72.0g (with 2 Pulley Modules), 64.5g (no Pulley Module)
CAD STEP: BL-200A-2M,
3-stacked slides with Continuous Rigging Wiring demo CAD,
3-stacked slides with Cascade Rigging Wiring demo CAD,
3-stacked slides demo2 CAD

Quick Instruction: Stack and Rig Continuously
1:1 Extension/Retraction Pulley Ratio Cascade Rigging

Make sure to order M4-6-5.5 (length 6mm) screws for stacking slides directly.

Testing the market. Will increase the stock if more is needed.

Choose Option:

Quantity: (5 available in stock)

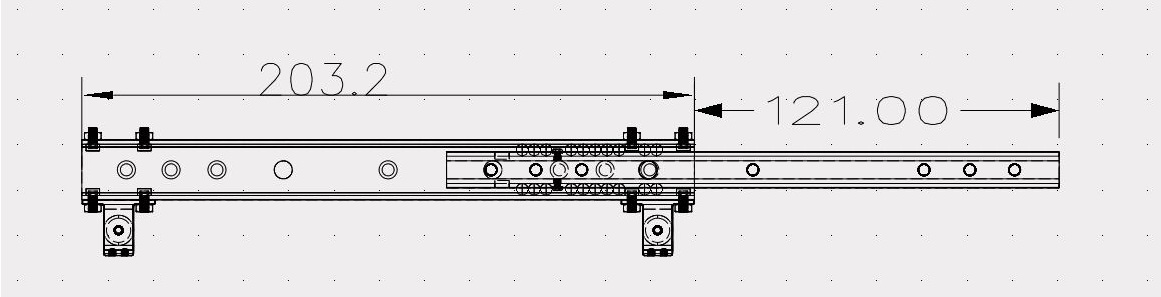

Total extension length of number of stacked slides (BL-200A-2M) = 121mm X # of stacked slides
e.g. for 4 stacked 8" slides, the total extension = 121mm X 4 = 484mm.





BL-300 4-stack Slides used by FTC Team 18225 High Definition
