BL-PM-01B Anodized Black Slide Pulley Module


$4.99

This specially designed pulley module allows BL-300/BL-400 series to stack slides efficiently. Some notable features include:

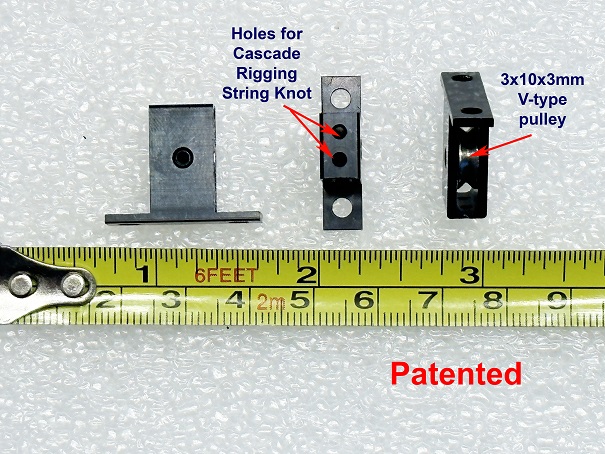

  • has a 3x10x3mm V-type pulley attached by a 3mm set screw. Loosening this screw allows for easy loading/unloading of string without need to disassemble the entire slide stack.
  • provides natural string guard that ensures string does not fall off the pulley.
  • two small holes on the top of module can be used for making a Clove Hitch (1) knot to build Cascade Rigging.

1, Clove Hitch knot is a strong and easy use method for tightening the string.

This module can be used with BL-300/BL-400 series slides as well as most other structural parts.

Weight: 3.20g
CAD STEP: BL-PM-01B



Quantity:



Total extension length of number of stacked slides (BL-300B-2M) = 205mm X # of stacked slides
e.g. for 4 stacked 12" slides, the total extension = 205mm X 4 = 820mm.





BL-300 4-stack Slides used by FTC Team 18225 High Definition
