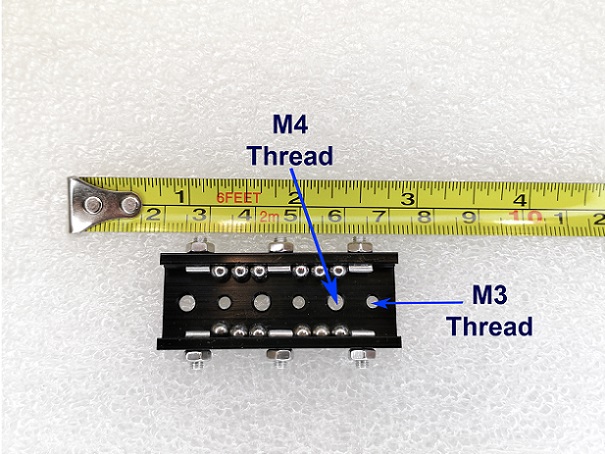

BL-SM-01 2" Sliding Module


$6.99

A clever modification to our innovative BWTLink linear slide series to achieve a compact and effective sliding module enabling resourceful component designs with passive and/or active linear motion.

Includes the same convenient mounting for our BL-PM-01B pulley modules as well as user-customed attachments.

Pairs with any BWTLink inner slide to accomplish the comprehensive and robust linear motion component.

    Package Included:
  • 6 default length BWTLink T-type screws
  • 6 M3 nuts
  • 12 ballbearings

Weight: 12.82g
CAD STEP: BL-SM-01,
Auto-control Slide Module demo CAD

This module is a good solution for our [BWTLink Design Chanllenge 2023 Slide Conservation] competition. Watch the video listed in the left panel to see closer how this module is moved in and out without extra servo.



Quantity: (6 available in stock)




--- Samples of using this Sliding Module ---

The Module attached with a delivery cart
slides against the rail

The rail attached with a claw
slides against the Module
