BL-EB-01 Everything Bearing

$9.89

Just like our favorite Everything Bagel, the Everything Bearing boasts everything one can possibly imagine achieving in the form factor of a compact and powerful bearing.

From being effective in:

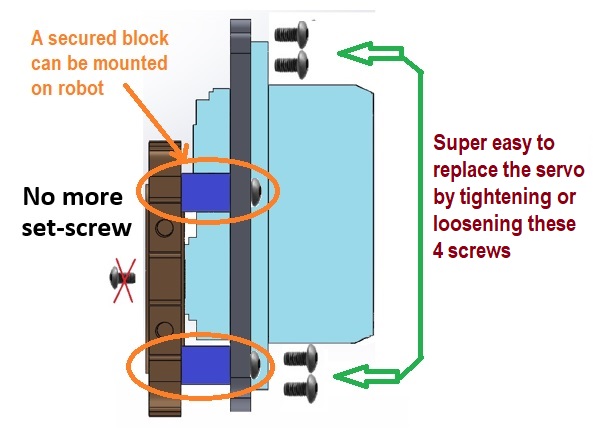

Easy replace Servo - let servo replacement as fast as racing car's tire change
Power transmission - can output the power to different way
Shaft adapting - can drive 6mm round shaft, 5mm Hex shaft, and 7mm shaft
Thrust bearing - avoids breaking Servo's gear/shaft
Multi-hole pattern mounting - not only works with our BL-SA-6 6mm Shaft Adaptor and BL-SA-57 7mm Hex Shaft Adaptor, but also much more others!

The Everything Bearing is an exceptional package that provides an easy-to-maintain, sturdy, and set-screw free assembly for countless applications!

CAD STEP: BL-EB-01
Weight: 21.30g

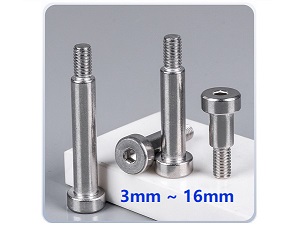

Shoulder Screw, BL-SA-6, and BL-SA-57 are sold separately.

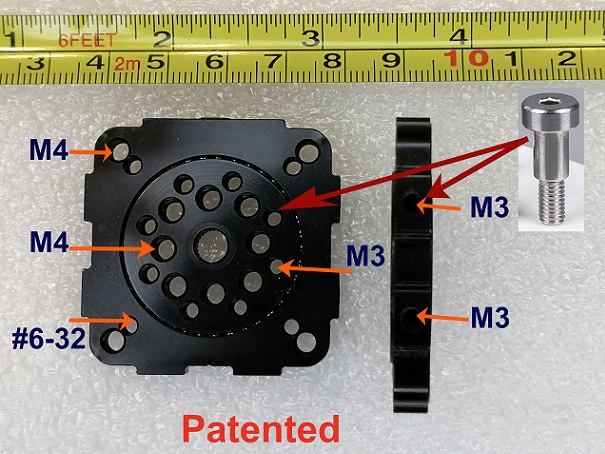

Note: M3 holes might need M4 Shoulder Screw.

CAD STEP
(Shows variant usages of BL-EB-01):
Demo 2 - A robot

Quantity:

Watch this video to see how to use BL-EB-01 to build "3-string Driven Rotatable Claw".
The free CAD files can be downloaded - (Demo Assembled Grabber CAD and Grabber Parts CAD)
